Non Woven Calender with Carpet Needle Punching Machine with Carding Machine
Shandong New Haina Machinery Co., Ltd.- Type：Surgical Supplies Materials
- Material：Non-woven Fabric
- Ethylene Oxide Sterilization：Without Ethylene Oxide Sterilization
- Quality Guarantee Period：Two Years
- Group：Adult
- Logo Printing：Without Logo Printing
Base Info
- Transport Package：Iron Packing
- Specification：6cbm
- Trademark：RONGDA
- Origin：Shandong
- Production Capacity：300pieces,Min
Description
Basic Info.
Transport Package Iron Packing Specification 6cbm Trademark RONGDA Origin Shandong Production Capacity 300pieces/MinProduct Description
| NO | ITEM | DESCRIPTION |
| 1 | Model | GMCD2-1500×Ф1230 |
| 2 | Raw materials work on | Processing of raw materials from feeding machine, the output fiber layer |
| 3 | Working width | 1500 mm |
| 4 | Production capacity | 180 kg/h(Reference 6 d first-grade product chemical fiber) |
| 5 | Fiber raw materials requirements | 3~15D×38~65mm |
| 6 | The speed of the output fiber layer | ≤40m/min |
| 7 | Total power | 18.7KW |
| 8 | Main body | High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays |
| 9 | Feeding roller | With a pressure roller feeding uniformity.Feeding roller: 4sets , φ65mm |
| 10 | Metal detectors | Equipped with metal detectors, feedback and control power and warning |

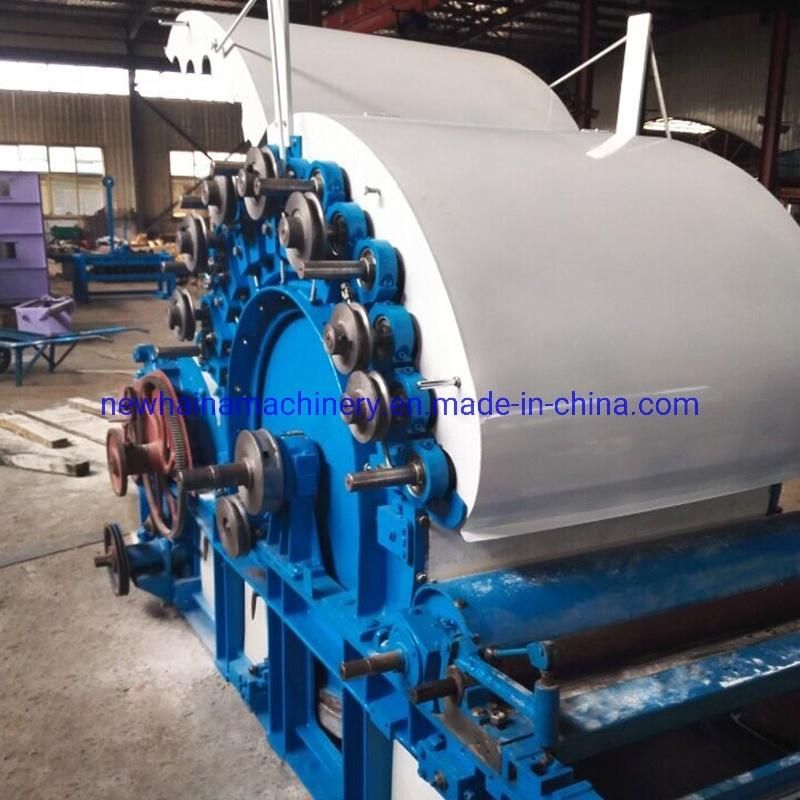

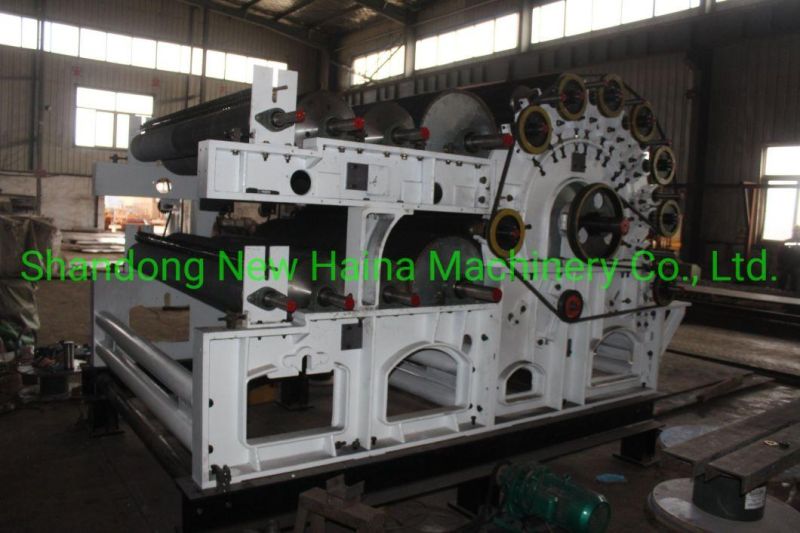

| 11 | Diameter of Cylinder &doffer &mixed and disorderly roller | φ1230 mm, double doffer diameterφ492 mm, mixed and double roller diameter: φ295 mm |
| 12 | No of groups | There are 5 carding working groups, so can get a very good carding effect |
| 13 | Dust collection points | There are 4 dust places |
| 14 | Working shield | Working shield with transparent organic glass, a mechanical rotation can be observed during it running |
| 15 | Power | 11KW ,for doffer: both 2.2KW, Fan 4KW all by inverter |

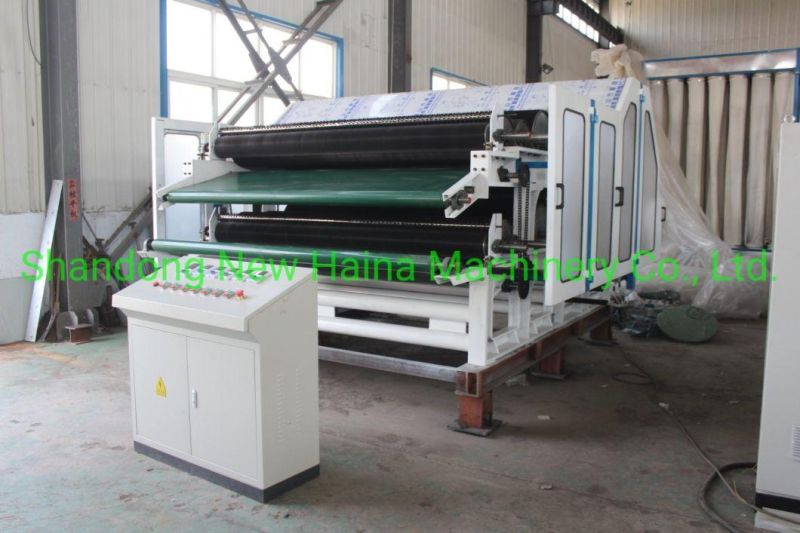

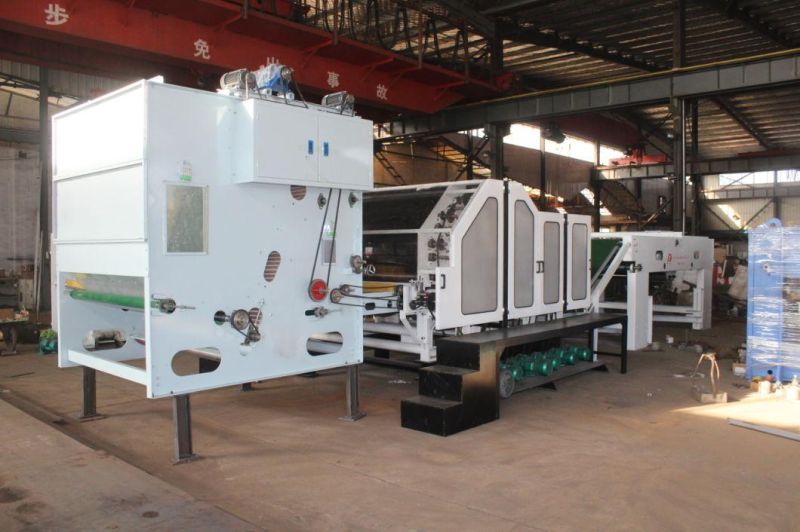

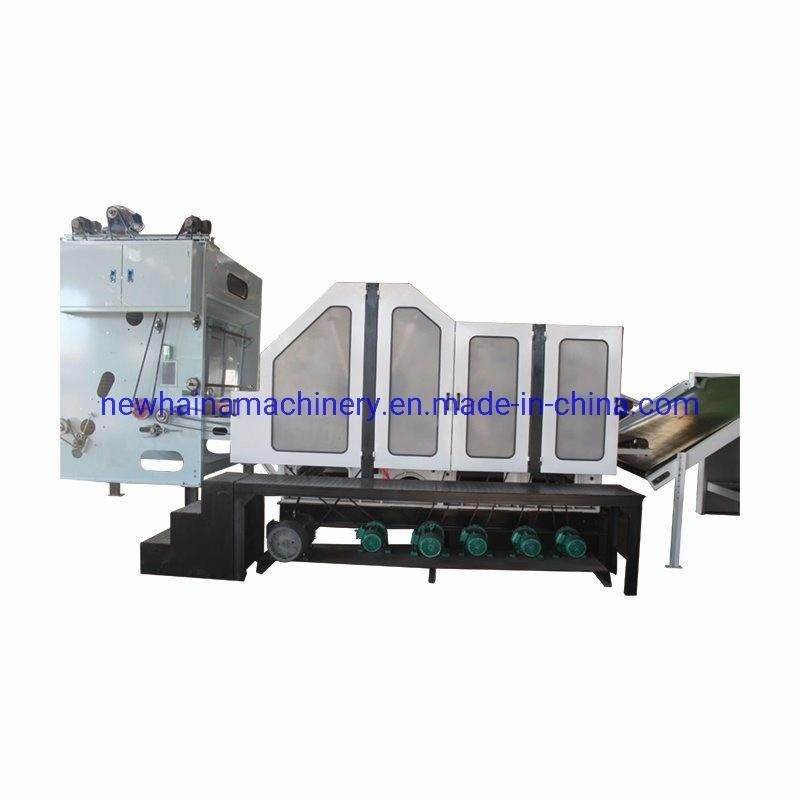

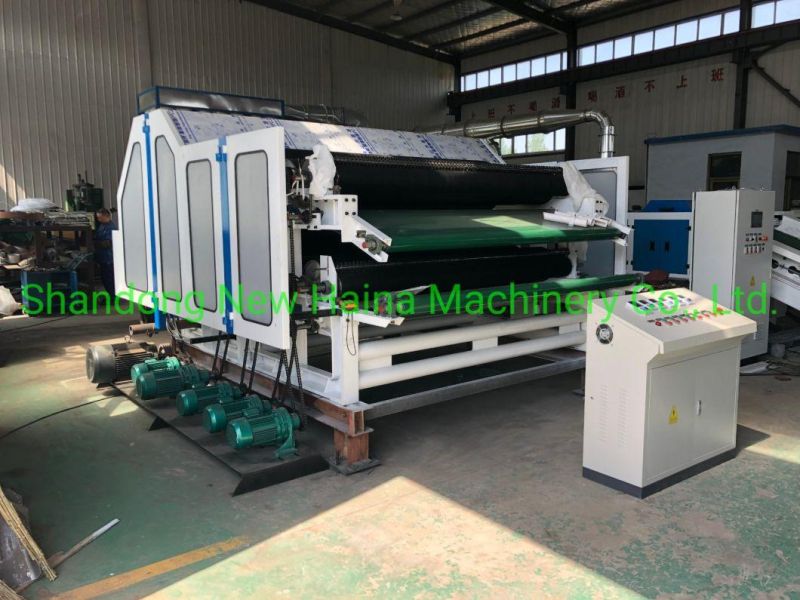

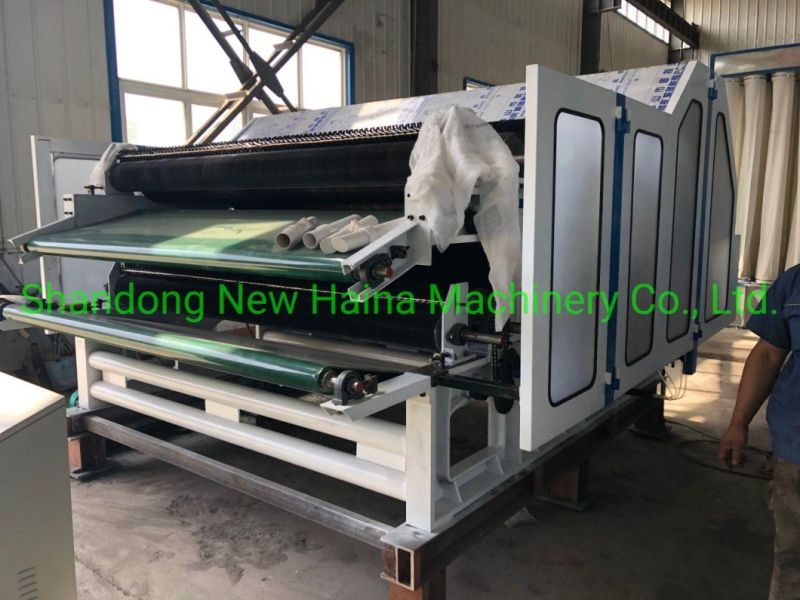

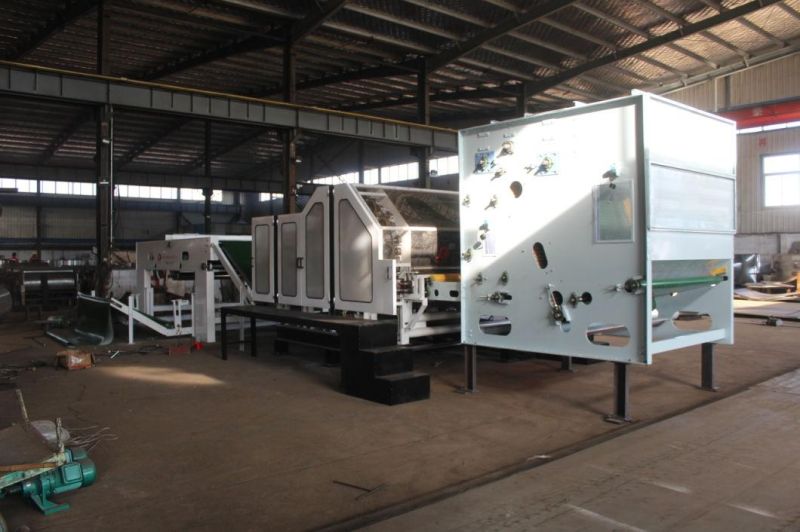

Carding machine with chute feeder,
Needle machine with winder and cutter.The necessary parts include Fan motor,Main motors,

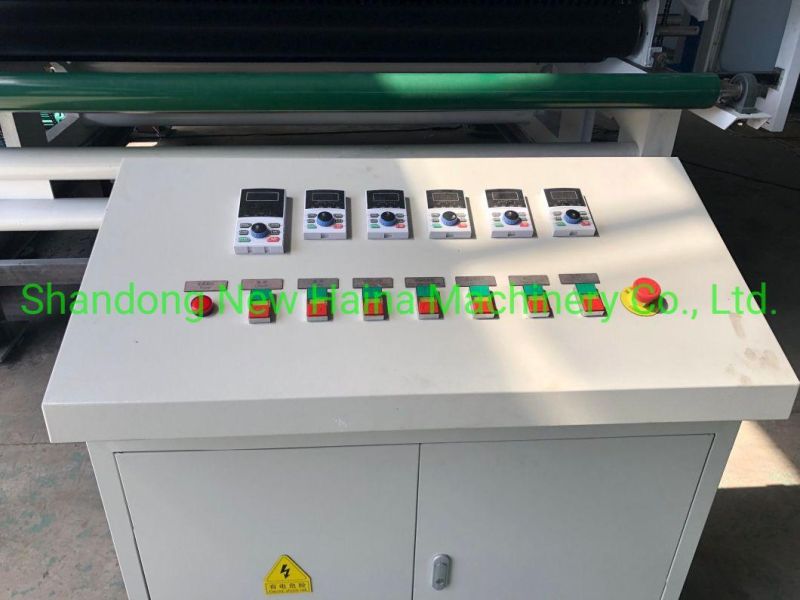

Speed reducers and Electric control cabinet.We can match machinery for you according to customer's requirement
Certification:
Warranty
Warranty: 12 month and 12 months free spare parts
Out of warranty time: we still supply board and favorable technical support and after service of life.
Installation
Before shipment, machine will be tested by our technicians to make sure the can work well.
Our technicians will be sent to user's factory to install the machine and train works if need.
( the buyer just need pay for the technician's tickets, meals accommodation and salary)
